KNIPEX Four-Mandrel Crimping System Platform
The KNIPEX four-mandrel crimping system platform is a modular crimping system for precise crimping of turned pin and socket contacts. Thanks to interchangeable locators, it allows flexible adaptation to well over 1,000 connector types and sizes from all major manufacturers, whilst maintaining consistently high crimping quality.
Procedure
Discover the digital product advisor and find the right crimping pliers
and locator for turned pin and socket contacts.
1. Select pliers
Available for two capacity ranges: the 63 version for 0.08 - 2.5 mm² and the 65 version for 0.14 - 6 mm². Both models are available with either an analogue or digital display.
AWG: 28 - 14
Max. contact diameter: 5 mm
Analogue
Digital display (DG)
AWG: 26 - 10
Max. contact diameter: 7.5 mm
Analogue
Digital display (DG)
Key features
Digital display
DG variants with digital display and electronic wear monitoring (patented) with warning function
Precise crimping mandrel feed
Crimping mandrel feed adjustable in 0.01 mm increments using an adjustment wheel
Reliable crimping
Reliable crimping due to synchronous feed of the crimping mandrels
Release lock
Reliable and consistently high crimp quality thanks to a release lock in accordance with IEC 60352 (positive lock, unlockable)
Available on the 97 52 63 DG A and 97 52 65 DG A variants with digital display.
Adjustable in 0.01 mm increments using an adjustment wheel
Settings in mm, inches or
equivalent selector positions
according to MIL
With wear prediction function and remaining service life indicator in per cent
Includes a calibration mandrel
for checking the basic setting
Included in the set:

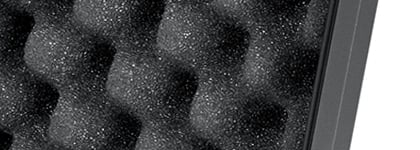

Plastic case
With foam insert

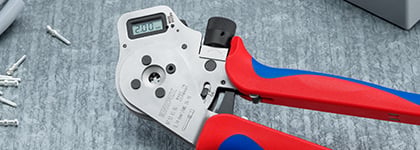

Four-mandrel crimping pliers
Available for different capacity ranges, optionally with analogue or digital display

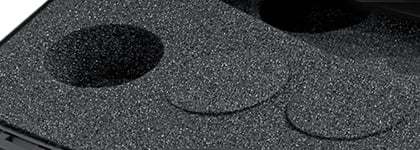

Slot positions
For up to 3 optional locators from the 97 59 63/65 xxx series
Calibration mandrel
For checking the default settings
Two hex keys
For fitting or changing the locators
Plastic case
With foam insert
Four-mandrel crimping pliers
Available for different capacity ranges, optionally with analogue or digital display
Slot positions
For up to 3 optional locators from the 97 59 63/65 xxx series
Calibration mandrel
For checking the default settings
Two hex keys
For fitting or changing the locators
2. Select contact holder
The range of applications for the crimping pliers can be adapted to connectors from all major manufacturers by swapping the locators.
The locators can be fitted or changed in
a matter of seconds using two hex keys
The correct setting can be adjusted using the spring-loaded clutch by pulling and turning
Capacity: 0.08 - 2.5 mm²
Capacity: 0.14 - 6 mm²
Discover the digital product advisor now and find the right crimping tool.
3. Check settings online
The required setting values for plugs and connectors are available online at any time. To do this select the relevant locator and open the corresponding settings table.
4. Crimping
The synchronous feed of the crimping mandrels enables a uniform, seamless (gas-tight) crimping of the copper strands in the contact.
Capacity: 0.08 - 2.5 mm²
AWG: 28 - 14
Max. contact diameter: 5 mm
Analogue
Digital display (DG)
Capacity: 0.14 - 6 mm²
AWG: 26 - 10
Max. contact diameter: 7.5 mm
Analogue
Digital display (DG)
